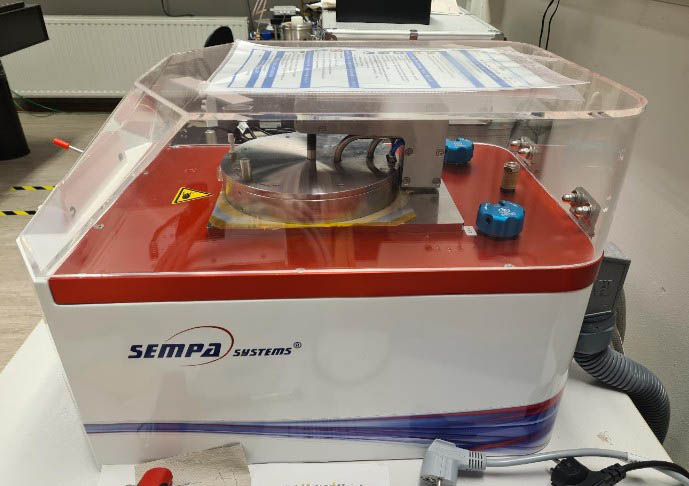

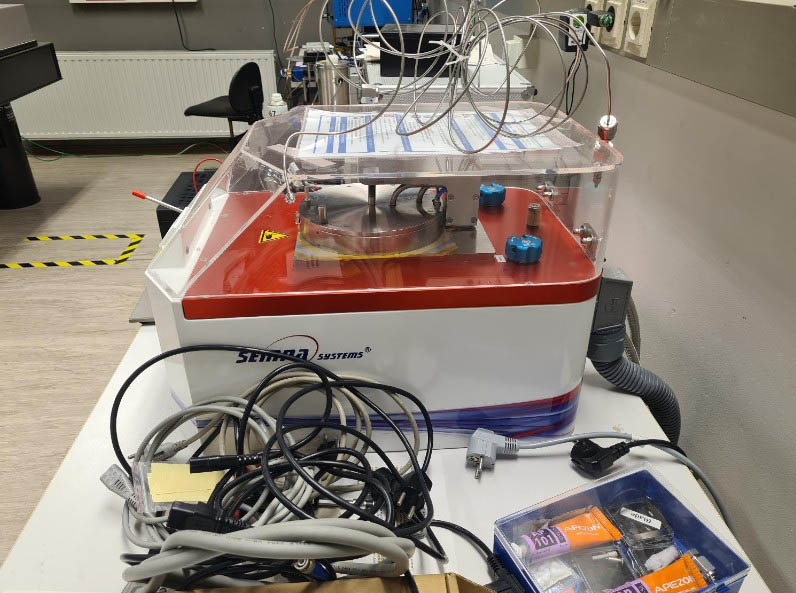

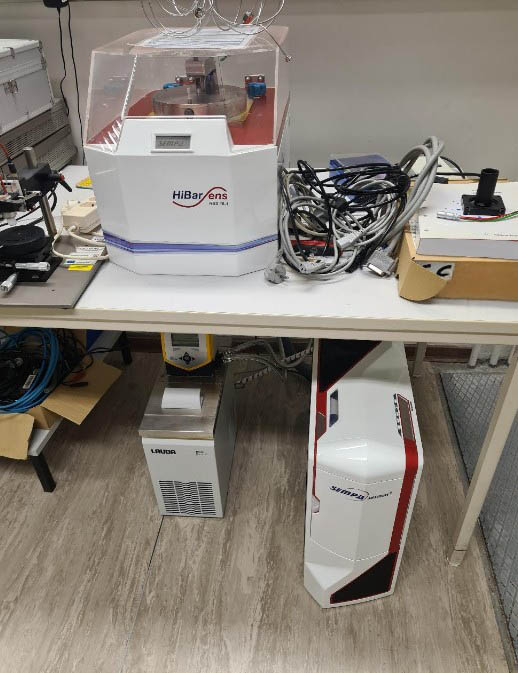

HiBarSens Permeation measurement

Permeation measurement using tuneable diode laser absorption spectroscopy.
Possibilities:
- Suitable for measuring water vapor transmission rates through barrier materials,
- enables measurements of WVTR < 10-6g [H2O] m-2 d-1,
- low-maintenance sensor,
- no drift,
- low potential adsorption surface,
- continuous measurement recording. dig.
Dynamic Range 10-6 – 2 g [H2O] m-2 d-1
Carrier Gas Nitrogen Flow Rate 3- 50 ccm
Operating Pressure 2,5 – 3,5 bar

L 550 x W 350 x H 380 mm, Weight 35 kg
